FANUC CNC Single-Axis Driver A06B-6117-H109 αi SV 360 Precision and Efficiency for Demanding Motion Control Tasks

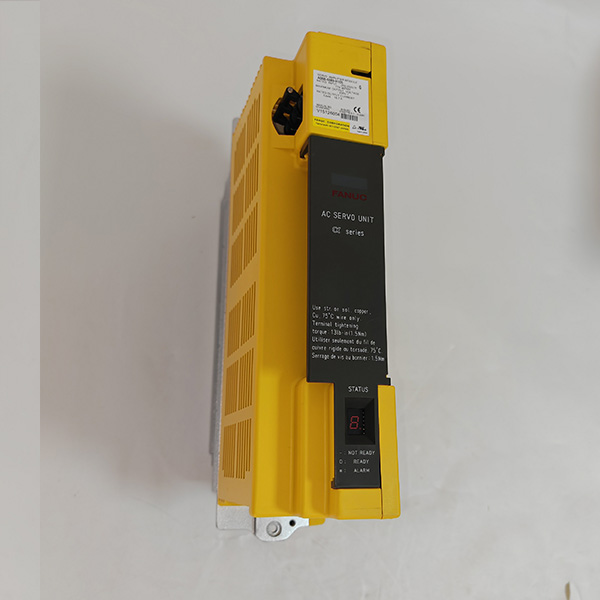

FANUC CNC Single-Axis Driver A06B-6117-H109 αi SV 360

The FANUC CNC Single-Axis Driver A06B-6117-H109 αi SV 360 is a high-performance servo amplifier engineered to deliver exceptional precision, efficiency, and stability in CNC (Computer Numerical Control) machine tool applications. This advanced driver is specifically designed to handle demanding motion control tasks, making it an ideal choice for industries requiring the utmost in accuracy and reliability.

Specifications and Features

• Model: A06B-6117-H109
• Series: αi SV 360
• Rated Output Current: 360Arms, providing robust power for large-scale servo motors.
• Control Method: Utilizes advanced sine-wave PWM (Pulse Width Modulation) control with an IGBT (Insulated Gate Bipolar Transistor) bridge, ensuring smooth and precise motor operation.
• Compatible CNC Systems: Fully compatible with FANUC's 16i, 18i, 21i, 0i-B/C/D, 30i, 31i, and 32i series, offering seamless integration into existing CNC environments.
• High Response Vector (HRV) Control: Supports HRV4 control, significantly enhancing the responsiveness and accuracy of servo motors, particularly during rapid acceleration and deceleration.
• Dynamic Brake Module (DBM): Incorporates an external dynamic brake module, enabling immediate stopping of the motor in emergency situations, thus enhancing safety and operational efficiency.
• Protection Functions: Equipped with comprehensive protection mechanisms, including overcurrent, overvoltage, overheat, and short-circuit protection, ensuring reliable and continuous operation under various conditions.
• Thermal Design: Optimized thermal management system, including effective heat sinks and fans, maintains stable operating temperatures even under heavy loads.

Performance Advantages

• High Precision: The αi SV 360's advanced control algorithms and HRV4 technology enable micron-level positioning accuracy, making it suitable for ultra-precision machining applications.
• High Efficiency: High-efficiency power conversion and minimal energy loss contribute to lower operational costs and reduced environmental impact.
• High Stability: Robust construction and rigorous testing ensure stable performance over extended periods, minimizing downtime and maintenance requirements.
• Easy Integration: Standardized communication protocols and a user-friendly interface facilitate seamless integration into existing CNC systems, reducing setup time and complexity.

Application Scenarios

• Aerospace Manufacturing: Ideal for drilling, milling, and grinding operations on aircraft components, where precision and surface finish are critical.
• Automotive Industry: Used in high-speed machining centers for engine blocks, transmission parts, and other critical components, ensuring high production efficiency and quality.
• Mold and Die Making: Provides the high precision and surface quality required for mold and die manufacturing, enhancing product durability and performance.
• Heavy Machinery: Suitable for driving large servo motors in heavy machinery applications, such as metal forming, cutting, and welding machines.

Specification Table

The FANUC CNC Single-Axis Driver A06B-6117-H109 αi SV 360 stands as a testament to FANUC's commitment to innovation and excellence in CNC technology. Its high precision, efficiency, and stability make it an indispensable component in modern manufacturing environments, driving productivity and quality to new heights.

FANUC CNC Single-Axis Driver A06B-6117-H109 αi SV 360 Precision and Efficiency for Demanding Motion Control Tasks Images
