B&R Good 8LSA46 Synchronous Motors 8LSA46.DB030S100-3 8LSA46.DB030S300-3, 8gp40-120-016s1l4 For Servo Driver System

Brand Name : B&R

Model Number : Synchronous motor 8gp40-120-016s1l4

Certification : CE UL cURus E360421 Servo and stepper motors - Component

Place of Origin : Austira or China as original

MOQ : 1 piece

Price : USD 1000 -20000 piece as depend on booking price

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 5 sets 10 days

Delivery Time : 3-70 working days

Packaging Details : 100*550*35 CM

Brand : B&R

Part number : Synchronous motor 8LSA46.DB030S300-3

Part number2 : Synchronous motor 8LSA46.DB030S100-3

Nominal speed nN [rpm : 6000

Maximum speed nmax [rpm : 12000

Maximum torque Mmax [Nm : 8LSA46.DA030S100-3

Nominal power PN [W : 1588

ACOPOS 8Vxxxx.xx... : 1045

ACOPOSmulti 8BVIxxxx... : 0055

Encoder : DB 2.2 inductive 32-line multi-turn

Holding torque of brake MBr [Nm : 8LSA46.DB030S300-3

Shaft end : shaft

Contact Now

8LS46...-3 three-phase Synchronous motors:

Original 8LSA46.DB030S300-3

DESCRIPTION:

Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3000 rpm stall torque: 10.000 Nm, without brake, shaft key single-cable solution angled (swivel), centering diameter 95 mm, j6 fit self-cooling, type A construction, IP64 protection, without oil seal, 560 VDC, holding torque of brake: 0.00 Nm DA 2.2 ind. 32-line single-turn.

8LSA46...-3 - Standard motors(Others)

8LSA46.DA030S000-3

8LSA46.DA030S200-3

8LSA46.DA060S000-3

8LSA46.DA060S200-3

8LSA46.DB030S000-3

8LSA46.DB030S200-3

8LSA46.DB060S000-3

8LSA46.DB060S200-3

8LSA46.DA030S100-3

8LSA46.DA030S300-3

8LSA46.DA060S100-3

8LSA46.DA060S300-3

Nominal speed nN [rpm]	3000
Number of pole pairs	5
Nominal torque Mn [Nm]	7.7
Nominal power PN [W]	2419
Nominal current IN [A]	4.7
Stall torque M0 [Nm]	10
Stall current I0 [A]	6.1
Maximum torque Mmax [Nm]	38
Maximum current Imax [A]	36.5
Maximum speed nmax [rpm]	12000
Torque constant KT [Nm/A]	1.63
Voltage constant KE [V/1000 rpm]	98.44
Stator resistance R2ph [Ω]	1.92
Stator inductance L2ph [mH]	17.4375
Electrical time constant tel [ms]	9.1
Thermal time constant ttherm [min]	40
Moment of inertia J [kgcm2]	4.387
Weight without brake m [kg]	7.3

Contact: Mrss. Lutos Deng

Email: lotusdeng@dfmold168.com

Whatsapp: +8619924983668

100% Original Automation Goods!

FAQ:

Q: How Can I Get The Quotation?
A:We will submit the quotation in 24 hours if getting detailed informations during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
1) Your engineering request such as model power, control specifcaiton and model label;
2) If replace model, you can send us the exiting model label for faster confirm.
3) Any special demands or requirements, such as packing, labels,delivery,etc.

4) 24 Hours Hot Line:+8615011939995 Email:jackyqiu@dfmold168.com

Q: Before Shipment, How To Make Sure The Product's Quality?
A: We will supply you a video for the product detail , packing detail and so on, also will provide the high quality pictures to you forproduction approval.

Q: What Is Your Payment Terms?
A: Payment: 50% deposit in advance, 50% before sending out the final goods if do not have store. 100% deposit in advance for in Stock model.

Q:What Is The MOQ?
A: 1 Set Is Acceptable.

Q: What Should We Do If We Receive Defective Products?
A: If You Receive Defective Products, Please Send Us Photos Or Videos, We Will Solve The Problem As Soon As Possible. We Are Responsible For All B&R Synchronous motor And Signaling Units Quality.

Q: How About The Technical Support ?
A: A Professional Engineer Team Will Be Here For You With 10 Years Experience.

Q: Which Payment Method And Express Can You Accept ?
A: T/T ; PayPal ; Trade Assurance ; Alipay If You Have New Solution. Welcome To Call Us.

Q: When Will My Parts Be Send Out ?
A: Order Time Will Be 3 Workdays, If No In Stock, Lead Time Will Be 2-4 Monthes welcome to send us contact.

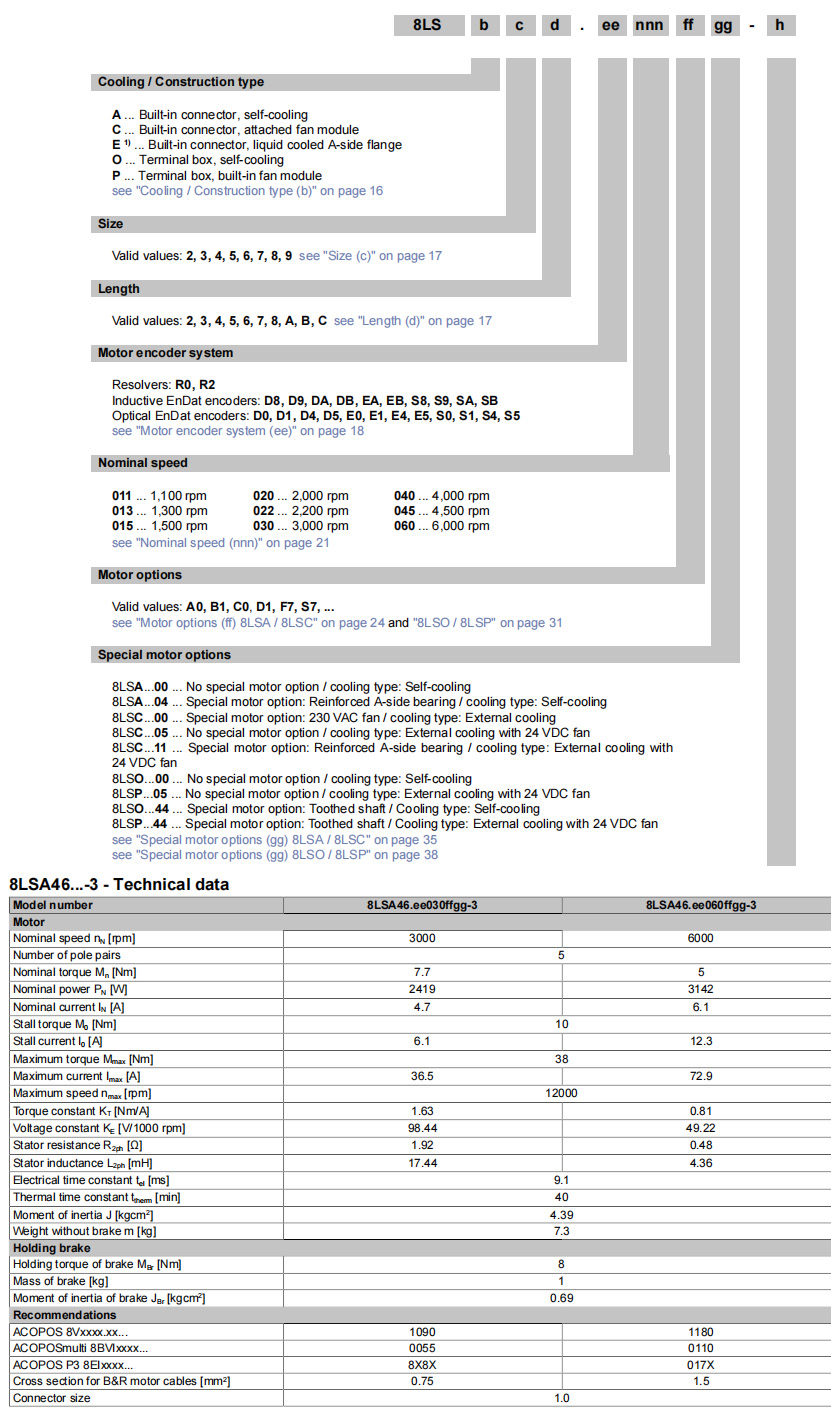

B&R Good 8LSA46 Synchronous Motors 8LSA46.DB030S100-3 8LSA46.DB030S300-3, 8gp40-120-016s1l4 For Servo Driver System Images
